Product description:
Adopt electrician grade polypropylene film as the dielectric, zinc aluminum metalized layer as the electrode, high quality engineering plastics shell, sealing with frame retardant epoxy resin, PVC electronic wire lead, good commonality and assembly flexible.
Parameters:
1. Certification marks: UL﹑VDE﹑CQC﹑TUV
2. Executing standards: GB/T3667.1、UL810、EN60252-1
3. Environment temperature: -40℃~+105℃
4. The rated voltage: 450VAC(50/60Hz)
5. Capacity range: 110VAC~600VAC (50/60Hz)
6. Capacitance tolerance: ±5%(J)、±10%(K)
7. Loss angle tangent
8. Testing voltage: Ut-t 2*UN (VAC)/60s(CQC、VDE、TUV) , 1.5*UN (VAC)/60s (UL)
Ut-c 2*UN+1000(VAC)/ 60s(≥2000VAC)
9. Insulation resistance(20℃):Ut-c ≥2000MΩ (500VDC,60s)
10. Protection level: CBB61 :P0 class ; CBB61-P2: P2 class
11. Fault current: CBB61-P2 : 10,000AFC ( UL 810)

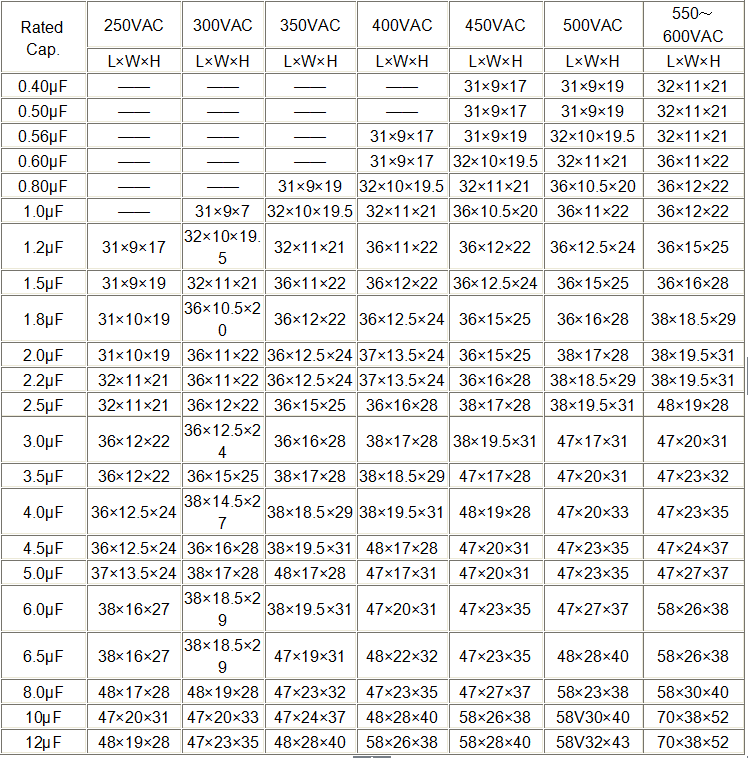

Commonly used specifications(Unit:mm)
