CBB61-P2 Security Anti-explosion Series



Product description:

Adopt electrician grade polypropylene film as the dielectric, security metallized electrode, 94V0 level frame retardant plastic shell, epoxy resin encapsulation, standard type outlet terminal. Using special manufacture process, have many characteristics such as electrical performance is stable, safety and anti-explosion.

The anti-explosion grade is P2, applied to high-end air conditioning.



Parameters:

1.Certification marks: UL﹑TUV﹑CQC

2.Executing standards: GB/T3667 、UL810 、EN60252

3.Climate type: 25/70/21、25/85/21、40/70/21、40/85/21

4.The rated voltage: 250 VAC,450VAC ( 50/60Hz)

5.Capacity range: 1μF~8μF

6.Capacitance tolerance: ±5%(J)、±10%(K)、±105%(U)

7.Testing voltage:  Ut-t   2*UN (VAC)/60s

Ut-c  2*UN+1000(VAC)/ 60s(≥2000VAC)

8.Insulation resistance: (20℃):Ut-c  ≥2000MΩ (500VDC,60s)

9.Loss angle tangent: (20℃):≤0.002 (100Hz )

10. Protection level: P2

11. Fault current: 10,000AFC ( UL 810)

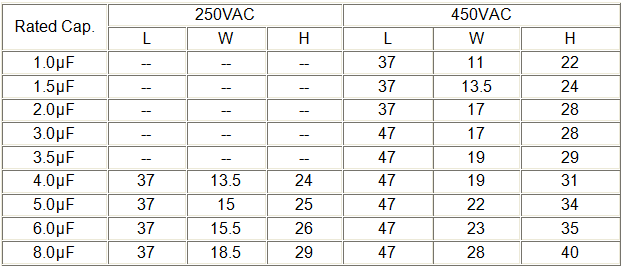

Commonly used specifications(Unit:mm)
