The main purpose and scope of application:
CMKP cylindrical self-healing type low voltage parallel capacitor is used for power factor correction of 50Hz or 60Hz low voltage power system equipment, apply to conventional on-site compensation and centralized automatic compensation, can reduce the reactive power loss, improve voltage quality, is the country strongly recommended energy-saving products.
The main technical parameters:
1.The rated voltage:0.23kv、0.4kv、0.415kv、0.44kv、0.45kv、0.525kv etc.
2.The rated capacity:1~30kvar;
3.Capacitance tolerance:―5%~+10%.
4.Loss angle tangent:tan∮≦0.1%
5.Meeting standard:GB/T12747—2004,IEC60831:2002

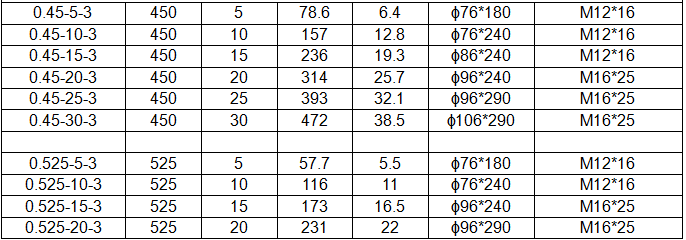

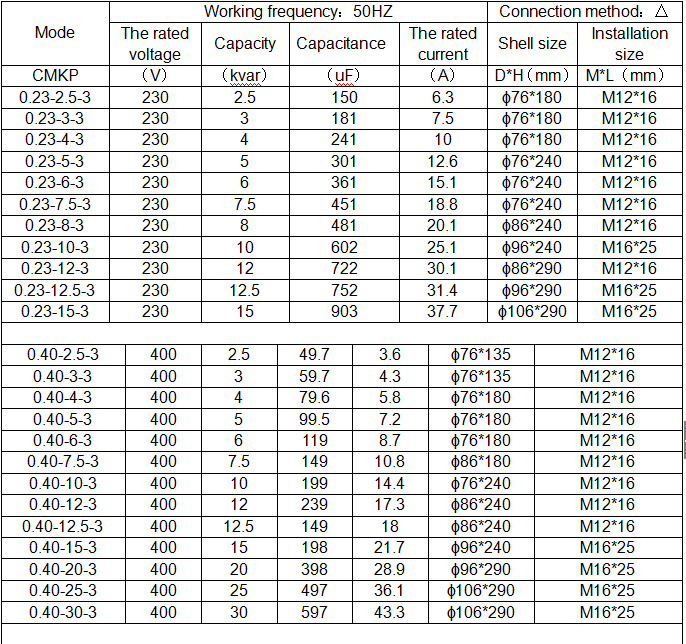

The main specification
Note:the other special specification products according to user’s requirements
