The main purpose and scope of application:
Self-healing type low voltage parallel capacitor is suitable for 50Hz or 60Hz low voltage power system, is used for improving power factor, reduce reactive loss, improve voltage quality, excavate transformer capacity etc. Is country strongly recommended the best power saving products.
Meeting standard: national standard GB/T12747—2004 (our company involved in drafting the standard )
The main technical parameter:
1.The rated voltage:230V,400V,450V,480V,525V,690V,750V,1200V
2.The other voltage can special order.
3.The rated capacity:0.4~0.69kvar
4.The capacity of other voltage grade can ordered.
5.The rated frequency:50Hz or 60Hz
6.Capacitance tolerance:―5%~+10%.
7.Loss angle tangent: 20℃ tanδ≦0.1%
8.Meeting standard: GB/T12747—2004,IEC60831:2002

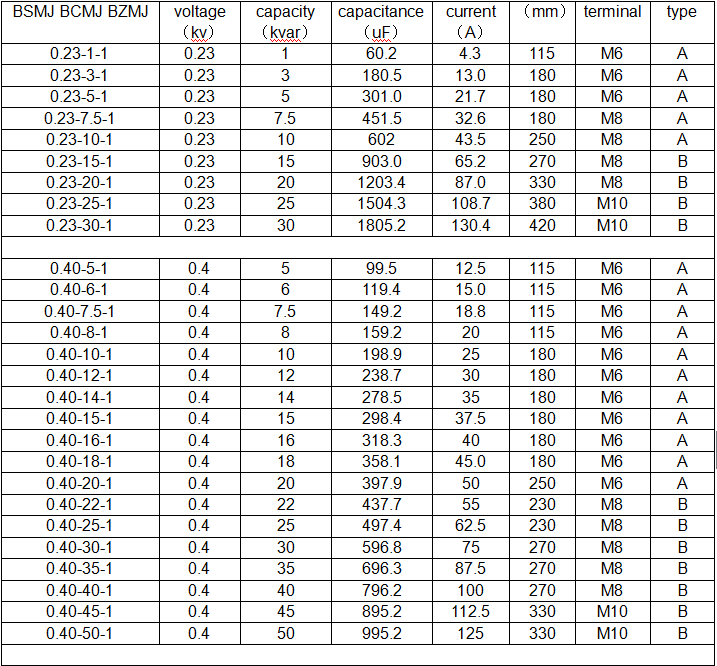

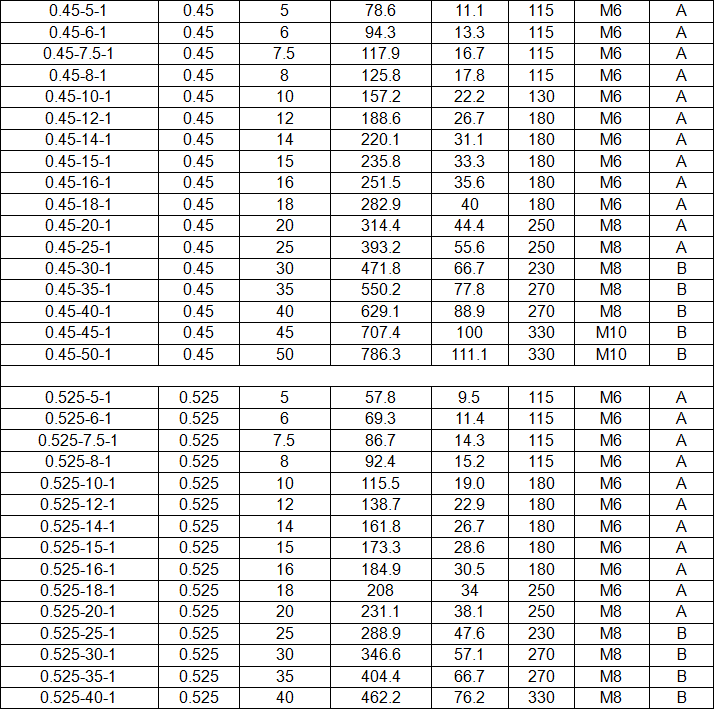

The main specifications:
Note: other special specification products according to user’s requirements.
