The main purpose and scope of application:
Self-healing type low voltage parallel capacitor is suitable for 50Hz or 60Hz low voltage power system, is mainly used to improve power factor, reduce reactive loss, improve voltage quality, excavate transformer capacity etc. Is country strongly recommended the best power saving products.
Meeting standard: national standard GB/T12747—2004 (our company involved in drafting the standard)
The main technical parameter:
1.The rated voltage:230V,400V,450V,480V,525V,690V,750V,1200V
2.The other voltage can special ordered
3.The rated capacity:0.4~0.69kvar
4.The other capacity of voltage grade can ordered.
5.The rated frequency:50Hz or 60Hz
6.Capacitance tolerance:―5%~+10%.
7.Loss angle tangent: 20℃ tanδ≦0.1%
8.Meeting standard: GB/T12747—2004,IEC60831:2002

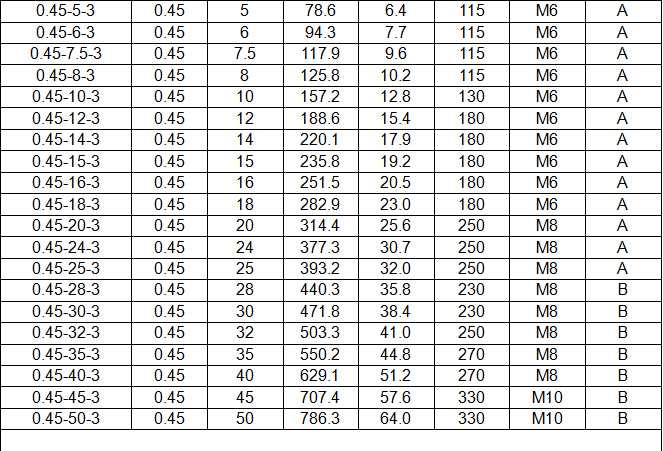

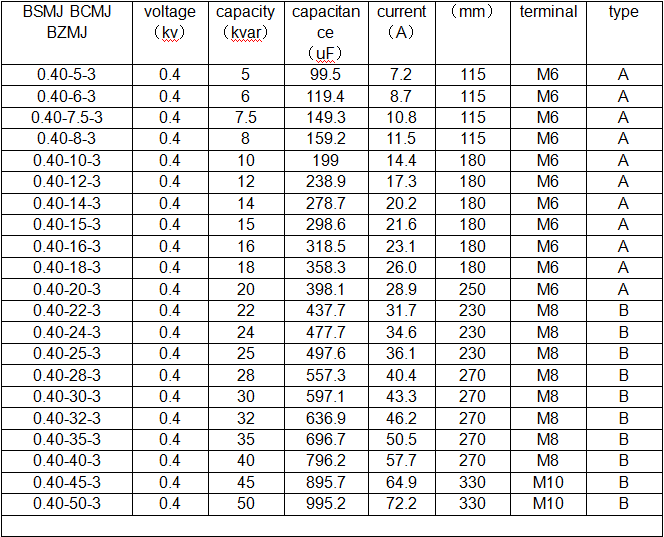

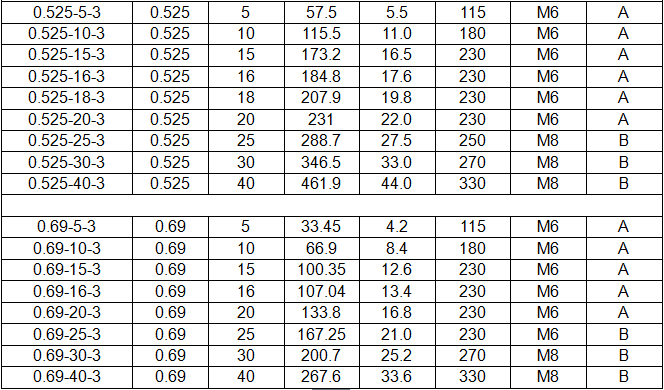

The main specifications:
Note: other special specification products supplying according to your requirements.
